Resistance tester

micro resistance tester

Resistance tester 10μ Ω – 2 k  5grades

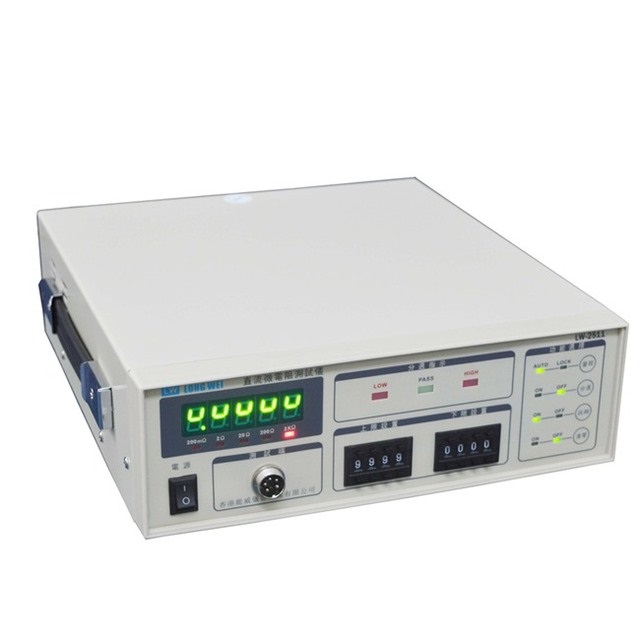

Model:Lw-2511

dc low resistance tester is designed for low resistance testing.The instrument adopts the constant current testing principle and the four-point measurement method, which has the characteristics of high test precision, fast speed and wide measurement range.Can be widely used in wire resistance and contact resistance, and other kinds of low resistance coil resistance test, the transformer coil, copper resistance of the motor coil, capacitors, relay contact resistance can be accurately measure.

Feature:

Resistance test range width:

LW – 2511: (10μ Ω – 2 k  5grades)

Test speed: 6 times/fast.

Measurement accuracy: 0.2%, ± 2 words.

Comparison method: resistance display.

Select function: LOW,PASS,HIGH judgment

Two kinds of judgment: comparison of resistance value

Panel direct zero function.

Hot touch button, operate sensitive.

Specification:

Basic accuracy： 0.2% ± 2 words

The range: automatically or manually locked

Test speed 6 times/fast

Test range 1 µΩ – 2 m Ω nine grade

Test current :100 µa – 100mA

Select function :LOW,PASS,HIGH judgment and buzzer sound

Test terminal five core socket

Interface sorting interface

Other specifications

Working temperature: 40 ℃, humidity 0-0-85% RH

Working power supply: 200VAC– 240VAC 50-60hz

Power consumption < 25 w

Machine size \ weight :280mm(W) * 89mm(H) * 280mm(D) / 1.5kg
