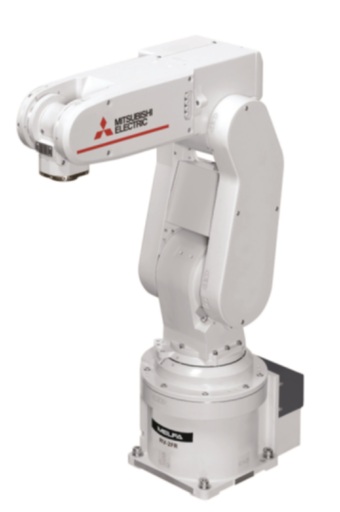

MITSUBISHI ELECTRIC Industrial Robot RV-2FR-D-S25,
6-axis; +/- 0,02mm;2kg;504mm;IP30;incl. CR800;no brake,
Robot RV-2FR-D 6-axis; +/- 0.02 mm;2kg; 504mm;IP30;built-in CR800-D
control unit, 5m Control unit robot cable, without brakes.
| Series |
RV-FR SERIES |
| Type |
VERTICAL |
| Payload (kg) |
2 |
| Max. Reach Radius (mm) |
504 |
| Environment specification |
STANDARD |
| Controller Type |
CR800-D |
| Cycle Time (s) |
0,6 |
| Speed (mm/s) |
4955 |
| Repeatability (mm) |
0,02 |
| Installation Method |
FLOOR, CEILING, WALL |
| Protection Class |
IP30 |
| Power Supply (VAC) |
1PHASE 200-230V |
| Power Consumption (VA) |
500 |
| Operating Range J1 (deg) |
480 |
| Operating Range J2 (deg) |
240 |
| Operating Range J3 (deg) |
160 |
| Operating Range J4 (deg) |
400 |
| Operating Range J5 (deg) |
240 |
| Operating Range J6 (deg) |
720 |
Conformity
| CE |
COMPLIANT |
| EAC |
NON-COMPLIANT |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
160 |
| Height (mm) |
623 |
| Depth (mm) |
525 |
| Weight (kg) |
19 |
Product Packaging
| Cardboard (g) |
7926 |
| Other paper (g) |
0 |
| Aluminum (g) |
0 |
| Steel (g) |
10 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
239 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
300 |
