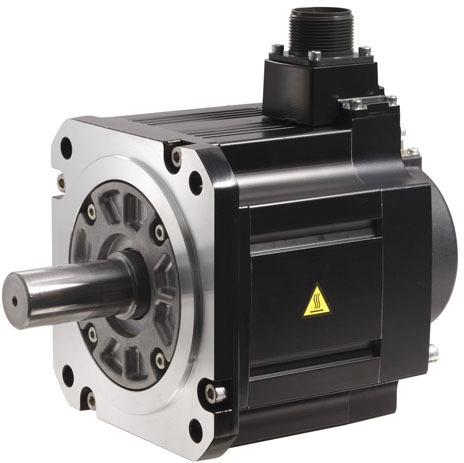

MITSUBISHI ELECTRIC HG-SNS Series Servo motor HG-SNS52BJK
MITSUBISHI ELECTRIC HG-SNS Series Servo motor HG-SNS52BJK
Description
MITSUBISHI ELECTRIC HG-SNS Series Servo motor HG-SNS52BJK,
Power 500 W; Torque 2,4 Nm; Brake; Oilseal; Keyway.
| Series | MELSERVO-JET |
|---|---|
| Type | HG-SNS |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,5 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 2,39 |
| Maximum Torque (Nm) | 7,16 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 9,48 |
| Brake | YES |
| Shaft Type | KEYWAY |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 130 |
|---|---|
| Height (mm) | 177,5 |
| Depth (mm) | 208 |
| Weight (kg) | 6,7 |
Product Packaging
| Cardboard (g) | 530 |
|---|---|
| Other paper (g) | 35 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 28 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
