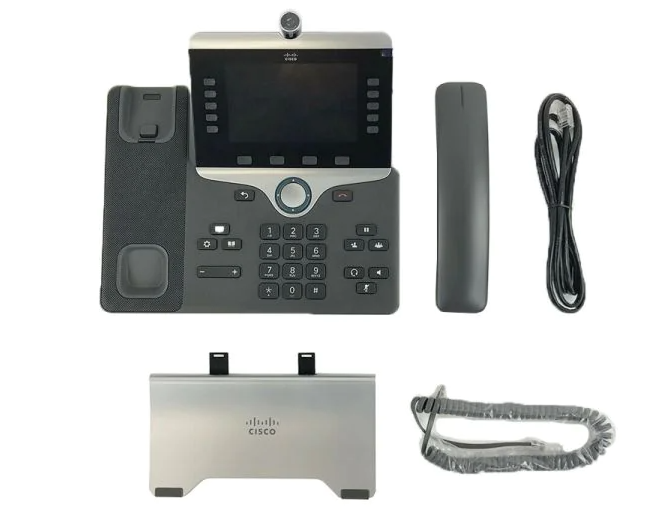

CP-8865-K9 Cisco 8800 IP Phone 5-inch Display/HD Audio/USB Port
CP-8865-K9 Cisco 8800 IP Phone 5-inch Display/HD Audio/USB Port
Description
CP-8865-K9 Cisco 8800 IP Phone 5-inch Display/HD Audio/USB Port,
The IP Phone 8865 combines an attractive new ergonomic design with 720p HD video and wideband audio for crystal-clear voice communications,
“always-on” reliability. It offers encrypted voice communications for enhanced security and access to a comprehensive suite of unified communications features.
Quick Specs
Table 1 shows the Quick Spec.
| Product Code | CP-8865-K9 |
| Display | 5” high-resolution (800 × 480) WVGA color display |
| Ethernet Switch | 10/100/1000 |
| Integrated Video | Yes – 720p HD, H.264 AVC
Camera: 80 degree FOV, 25 degree tilt up/down; Manual shutter (privacy) |
| Programmable Soft Keys | 4 |
| Number of Line Keys | 5 |
| Full Duplex Speakerphone | Yes |
| Wideband Audio | Yes |
| PoE Classification | Class 4 |
| Third-party Call Control | Yes |
| Replaceable Bezel | Yes (Black, Silver) |
Product Details
Figure 1 shows the buttons and hardware.
Note:
| ① | Handset light strip | ⑪ | Mute button |
| ② | Programmable feature buttons and Session buttons | ⑫ | Headset button |
| ③ | Camera | ⑬ | Keypad |
| ④ | Softkey buttons | ⑭ | Volume button |
| ⑤ | Navigation | ⑮ | Contacts button |
| ⑥ | Release Button | ⑯ | Applications button |
| ⑦ | Transfer button | ⑰ | Messages button |
| ⑧ | Hold/Resume button | ⑱ | Messages button |
| ⑨ | Conference button | ⑲ | Handset |
| ⑩ | Speakerphone button |
Figure 2 shows key expansion module.
CP-8865-K9 offers optional Key Expansion Modules. The modules should order separately.
