Ex ATEX Explosion Proof (Safety Switch)
Safety Switch
Description
The safety switch is used as main connection switch for distribution units and motor circuits. They also ensure that machines in hazardous areas are disconnected from electrical power during cleaning and repair work.
The TEP Ex R3003/100 safety switch is approved for use in hazardous areas of Zones 1, 2, 21 and 22.

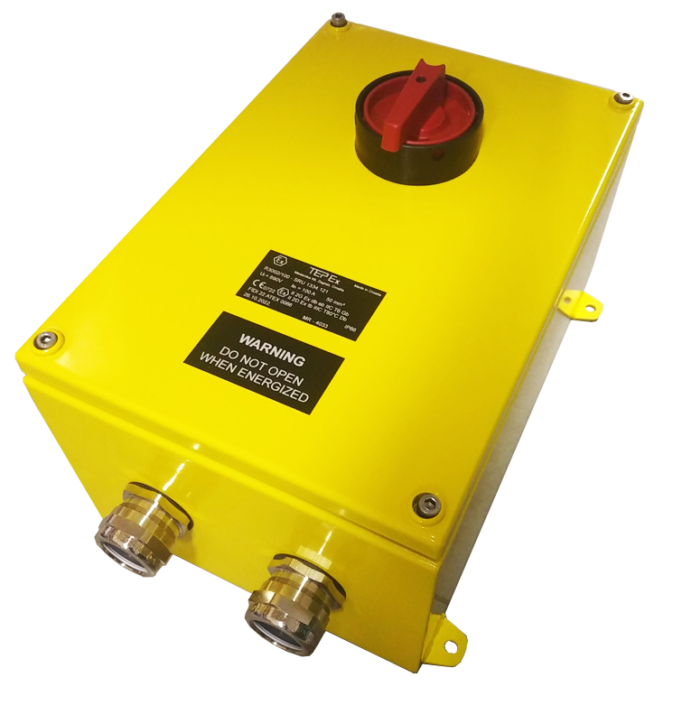

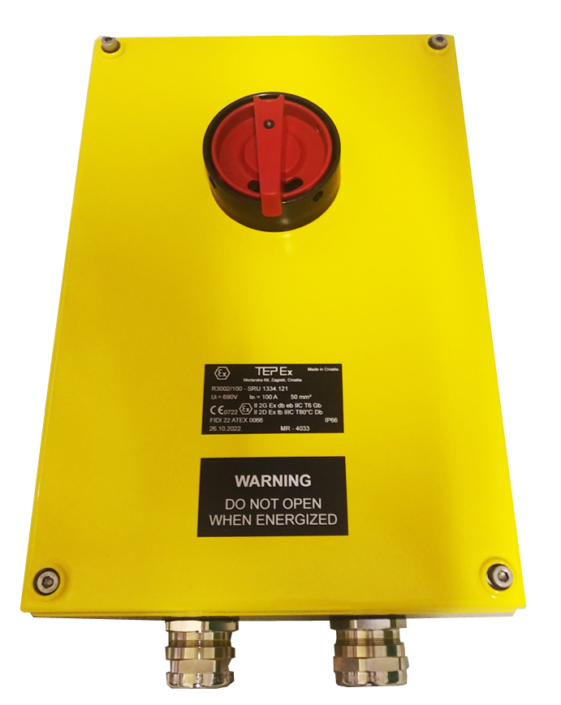

- Robust Ex eb sheet steel enclosure

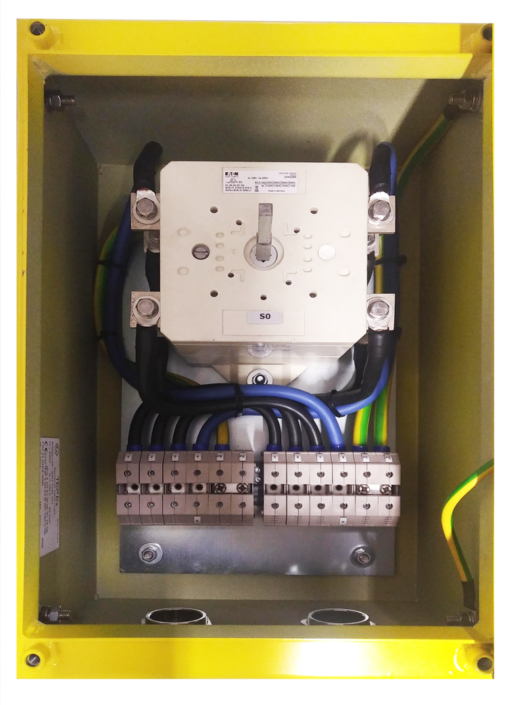

- Built in 100A , 4 pole safety switch
- Up to 12 pieces of 50 mm2 terminal blocks
- Non-armoured and armoured metal cable glands according to customer’s
-
Enviroment temperature: -20°C ÷ +40°C Degree of protection: IP66 Rated voltage:Rated current: 630V ±10% AC100A
