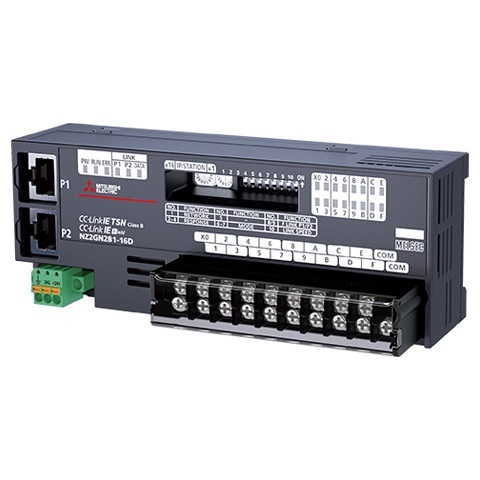

MITSUBISHI ELECTRIC PLC Remote Input Module NZ2GN2B1-16D
MITSUBISHI ELECTRIC PLC Remote Input Module NZ2GN2B1-16D
Description
MITSUBISHI ELECTRIC PLC Remote Input Module NZ2GN2B1-16D,
24V DC, 16 inputs, Class B, screw terminal.
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE DC INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,11 |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 147 |
|---|---|
| Height (mm) | 54,5 |
| Depth (mm) | 57 |
| Weight (kg) | 0,21 |
Product Packaging
| Cardboard (g) | 120,0 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
