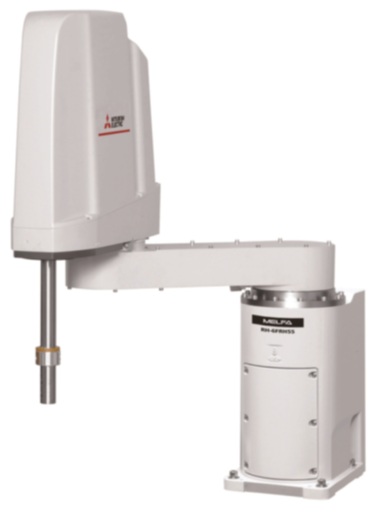

MITSUBISHI ELECTRIC Industrial Robot RH-6FRH5520N-D,
Robot RH-6FRH-D 4-axis; +/- 0.012mm; 6kg; 550/200mm; built-in,
CR800-D control unit, 5m Control unit robot cable.
| Series |
RH-FR SERIES |
| Type |
SCARA |
| Payload (kg) |
6 |
| Max. Reach Radius (mm) |
550 |
| Z Axis Stroke (mm) |
200 |
| Environment specification |
OIL MIST |
| Controller Type |
CR800-D |
| Cycle Time (s) |
0,29 |
| Speed (mm/s) |
8300 |
| Repeatability (mm) |
0,012 |
| Installation Method |
FLOOR |
| Protection Class |
IP54 |
| Power Supply (VAC) |
1PHASE 200-230V |
| Power Consumption (VA) |
1000 |
| Operating Range J1 (deg) |
340 |
| Operating Range J2 (deg) |
290 |
| Operating Range J4 (deg) |
720 |
Conformity
| CE |
COMPLIANT |
| EAC |
NON-COMPLIANT |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
174 |
| Height (mm) |
798 |
| Depth (mm) |
775 |
| Weight (kg) |
37 |
Product Packaging
| Cardboard (g) |
26926 |
| Other paper (g) |
120 |
| Aluminum (g) |
0 |
| Steel (g) |
70 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
1288 |
| Wood (g) |
36900 |
| Glass (g) |
0 |
| Others (g) |
500 |
