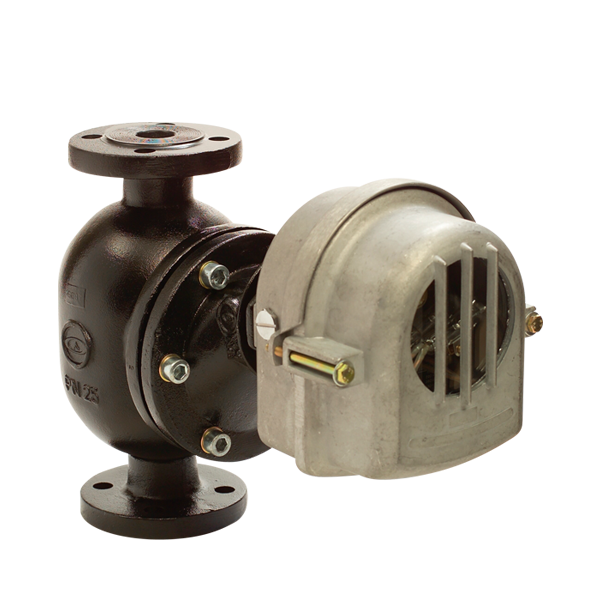

This type level controller has wide setting range which is provided float movement. High movement capacity is supported by its metal bellows. Contact, which is controlled by mechanical parts, is closed circuit for controlling other device.

Level Control Range:
A1: 15 to 75mm
A2: 15 to 30mm

Materials:
Body: GGG 40.3
Internal parts in contact with the liquid: AISI 316 L stainless steel

Contacts:
380V 3,3A (AC) 1,1 kW
220V 1A (DC)

Connection:
Screwed
Flanged
Weld End

Working Pressure:
Up to 25 Bars

Working Temperature:
0-200 ºC

Application area:
-Steam Boilers
