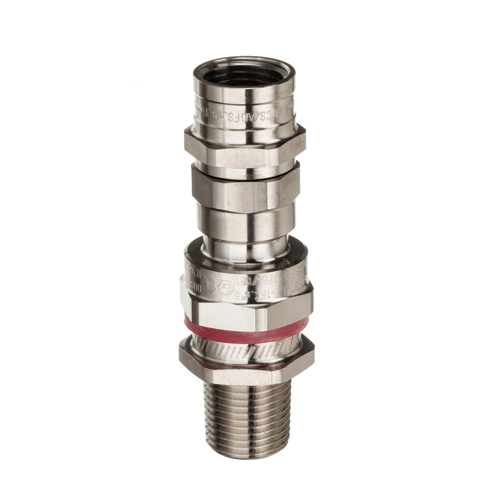

ADFS is a cable gland widely approved for use with a cable and tubing system and includes a composite barrier.
Capri ADFS – Designed and approved for use in the harshest environments
Capri ADCC and ADCS are the best solutions for extreme operating temperatures between -60 ° C and + 140 ° C. The sealing material in Eaton’s Capri series cable glands has been carefully formulated to achieve optimum performance.
Capri ADCC and ADCS, rated IP66 and IP68, are dustproof and can withstand continuous full immersion in water.
Swivel joint to rigid pipe
Provide female thread for rigid pipe connection and independent connection for ease of installation. Multiple female thread options are available for rigid pipe.
Available cable types
Unarmored cable
Cable with insulated conductors, no mechanical (metallic) protection layer.
Marine ship cable
Unarmored cable specially designed for marine applications.
Tray cable
Tray cable designed for industrial high power applications.
P type cable
Robust unarmored cable specially designed for oil and gas drilling applications.
Protection category
ATEX
Approved in accordance with EU directives for explosive atmospheres.
IECEx
Certified in accordance with international IEC standards for equipment in explosive atmospheres.
FIELD CLASSIFICATION
Zone 1 and 2, Groups I, IIA, IIB and IIC Zone 21 and 22, Groups IIIA, IIIB and IIIC
